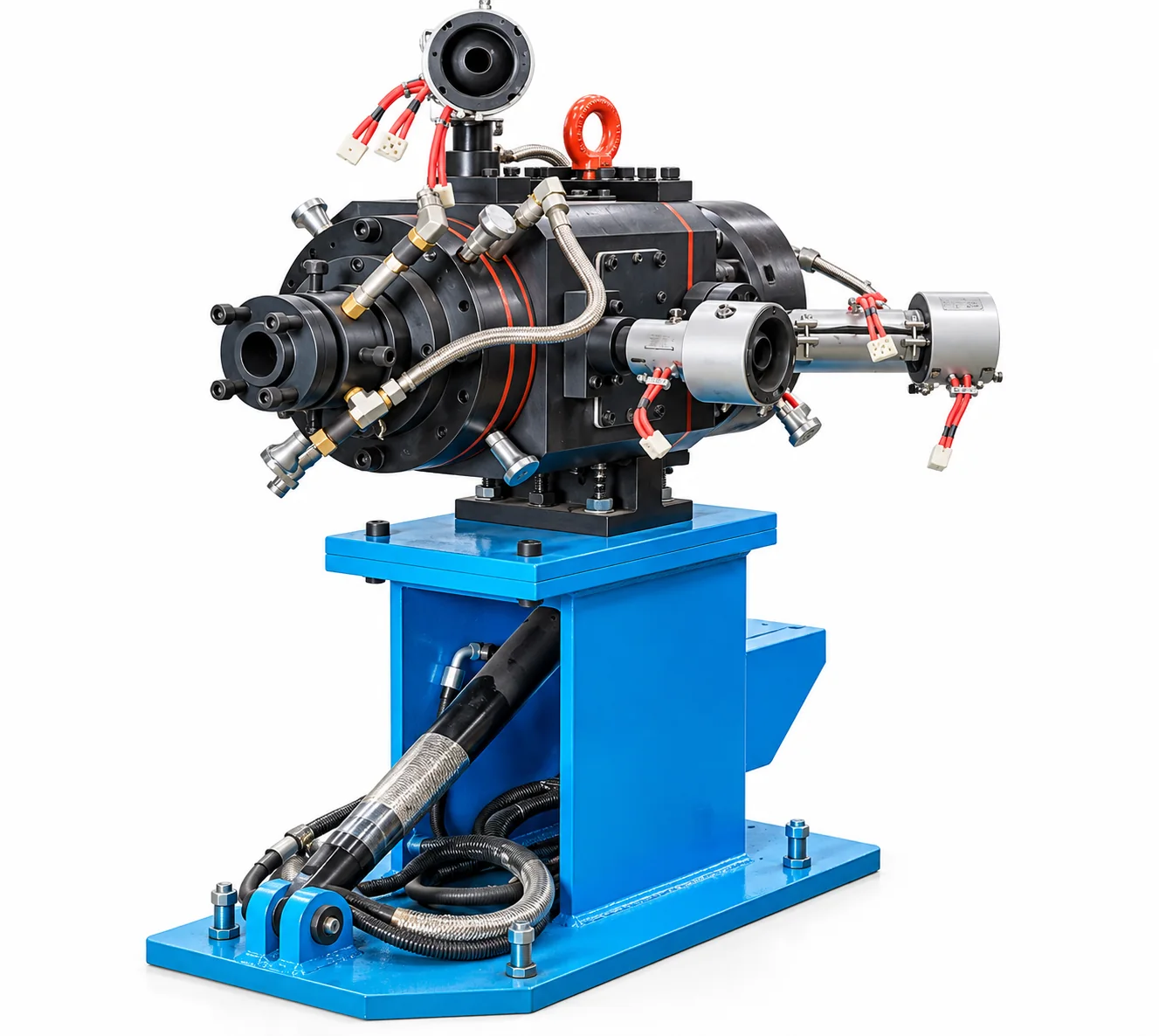

crossheads

Crossheads

Technical size tables and mechanical characteristics for manual, self-centering, single-layer, and triple-layer crossheads.

Call us

Crosshead specifications

Compare the available single-layer manual/die-center and self/fix-center crossheads, plus triple-layer models for MVCC/SIOPLASS/CCV lines. Maximum conductor and cable diameters are listed for each model.

overview

Machine overview.

Review the available manual/die-center and self/fix-center single-layer crosshead sizes, along with triple-layer crossheads for MVCC/SIOPLASS/CCV lines. The tables list the maximum conductor and cable diameters for each model.

Manual Centering Heads Sizes : 10-12 to 130-150

Manual centering heads designed to minimize starting times as well as the time of change of guide and die.

Mechanical Characteristics

Made of Nitride steel or Hastelloy for fluorinated materials.
Distributor with optimal distribution “easy flow”.
Skin cap with cylindrical distributor.
Manual or hydraulic bleed screws.

Self-Centering Heads For Big Diameters Sizes : upto 80-100

Self-centering head designed to minimize line start time, reduce scrap and increase concentricity

Mechanical Characteristics

Self-centering head.
Head body and accessories made of Nitrided steel.
Head with double distributor for the two internal layers and by means of a bushing for the external layer.
Mounting by guide, hybrid and swath, with adjustment of the position of the guide, hybrid of fixed position and adjustable swath position.
Heating resistors and thermocouple sockets.
Easy to change the tooling on the front.
Head of reduced dimensions facilitating the use and maintenance operations.

Triple Extrusion Head Size : 4/6 to 35/45mm

Manual centering heads designed to minimize starting times as well as the time of change of guide and die.

Mechanical Characteristics

Made of Nitride steel or Hastelloy for fluorinated materials.
Distributor with optimal distribution “easy flow”.
Skin cap with cylindrical distributor.
Manual or hydraulic bleed screws.

Manual/Die Center Single Layer Crosshead

S.No.	Description	Max. Conductor Dia	Max. Cable Dia
1	10 X 15 Manual/Die Center Single Layer	12.00 MM	15.00 MM
2	15 X 25 Manual/Die Center Single Layer	17.00 MM	25.00 MM
3	25 X 35 Manual/Die Center Single Layer	27.00 MM	35.00 MM
4	35 X 45 Manual/Die Center Single Layer	35.00 MM	45.00 MM
5	40 X 60 Manual/Die Center Single Layer	40.00 MM	60.00 MM
6	65 X 80 Manual/Die Center Single Layer	65.00 MM	80.00 MM
7	80 X 100 Manual/Die Center Single Layer	80.00 MM	100.00 MM
8	100 X 120 Manual/Die Center Single Layer	100.00 MM	120.00 MM
9	120 X 140 Manual/Die Center Single Layer	120.00 MM	140.00 MM
10	140 X 160 Manual/Die Center Single Layer	140.00 MM	160.00 MM

Self/Fix Center Single Layer Crosshead

S.No.	Description	Max. Conductor Dia	Max. Cable Dia
1	4 X 6 Self/Fix Center Single Layer Crosshead	6.00 MM	10.00 MM
2	16 X 20 Self/Fix Center Single Layer Crosshead	16.00 MM	22.00 MM
3	25 X 35 Self/Fix Center Single Layer Crosshead	25.00 MM	35.00 MM
4	35 X 45 Self/Fix Center Single Layer Crosshead	35.00 MM	45.00 MM
5	40 X 60 Self/Fix Center Single Layer Crosshead	40.00 MM	60.00 MM

Tripple Layer Crosshead for MVCC/SIOPLASS/CCV

S.No.	Description	Max. Conductor Dia	Max. Cable Dia
1	2540 Tripple Layer Crosshead for MVCC/SIOPLASS/CCV Line	25.00 MM	42.00 MM
2	4575 Tripple Layer Crosshead for MVCC/SIOPLASS/CCV Line	45.00 MM	80.00 MM
3	5090 Tripple Layer Crosshead for MVCC/SIOPLASS/CCV Line	50.00 MM	90.00 MM

FAQs

Frequently asked questions.

Helpful details about this machine, its capabilities, and applications.

What crosshead specification groups are covered?

What dimensions are shown in the tables?

Which triple-layer crosshead models are listed?

Are the listed sizes the same for every crosshead type?
