Supermac Caterpillar Series
A range of caterpillar configurations from 4+4+2 to 12+12+2.
control

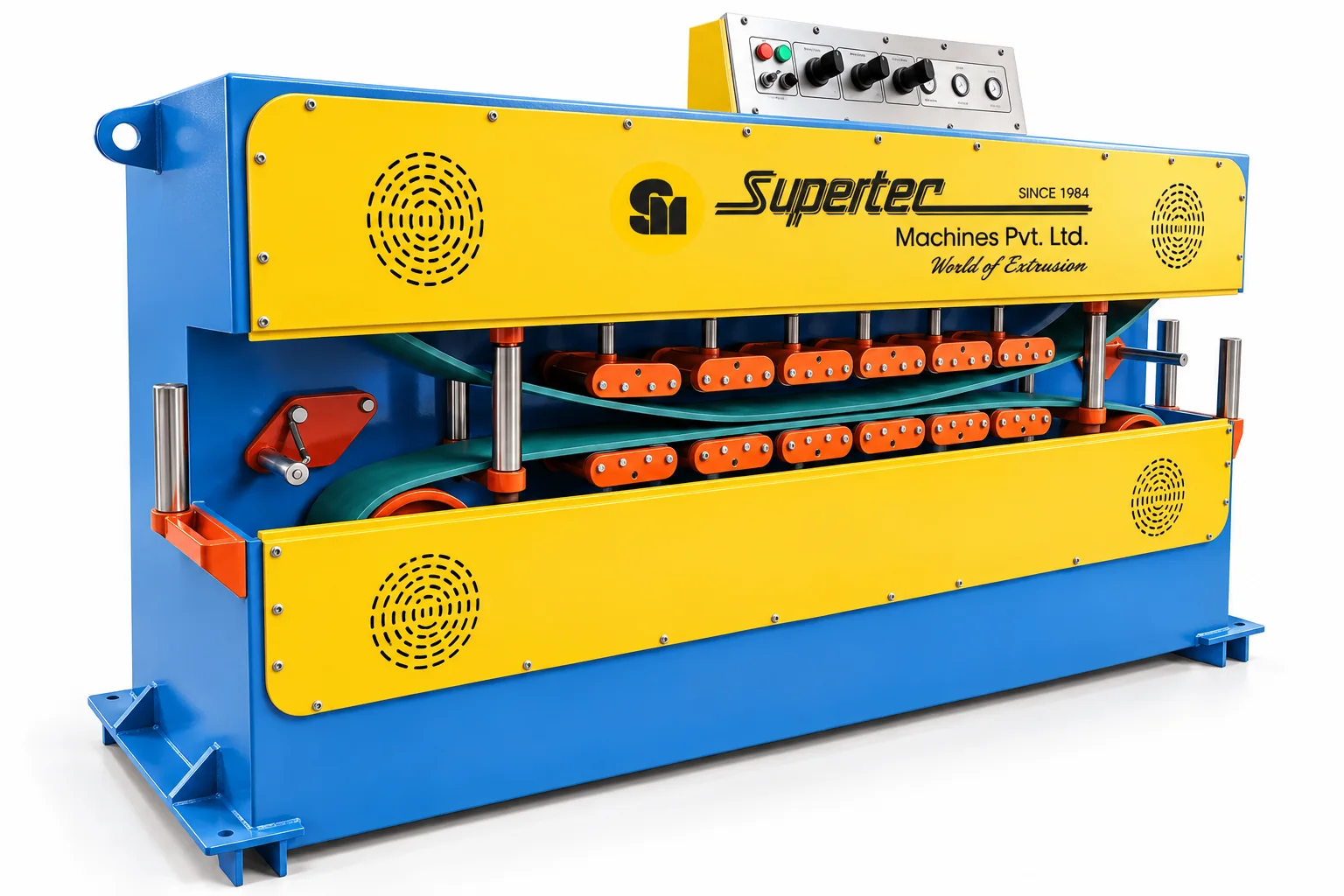

Caterpillar Haul-Off Machine
Supermac caterpillar haul-off machines with AC servo drives, adjustable pneumatic belt pressure, and fully guarded operation.

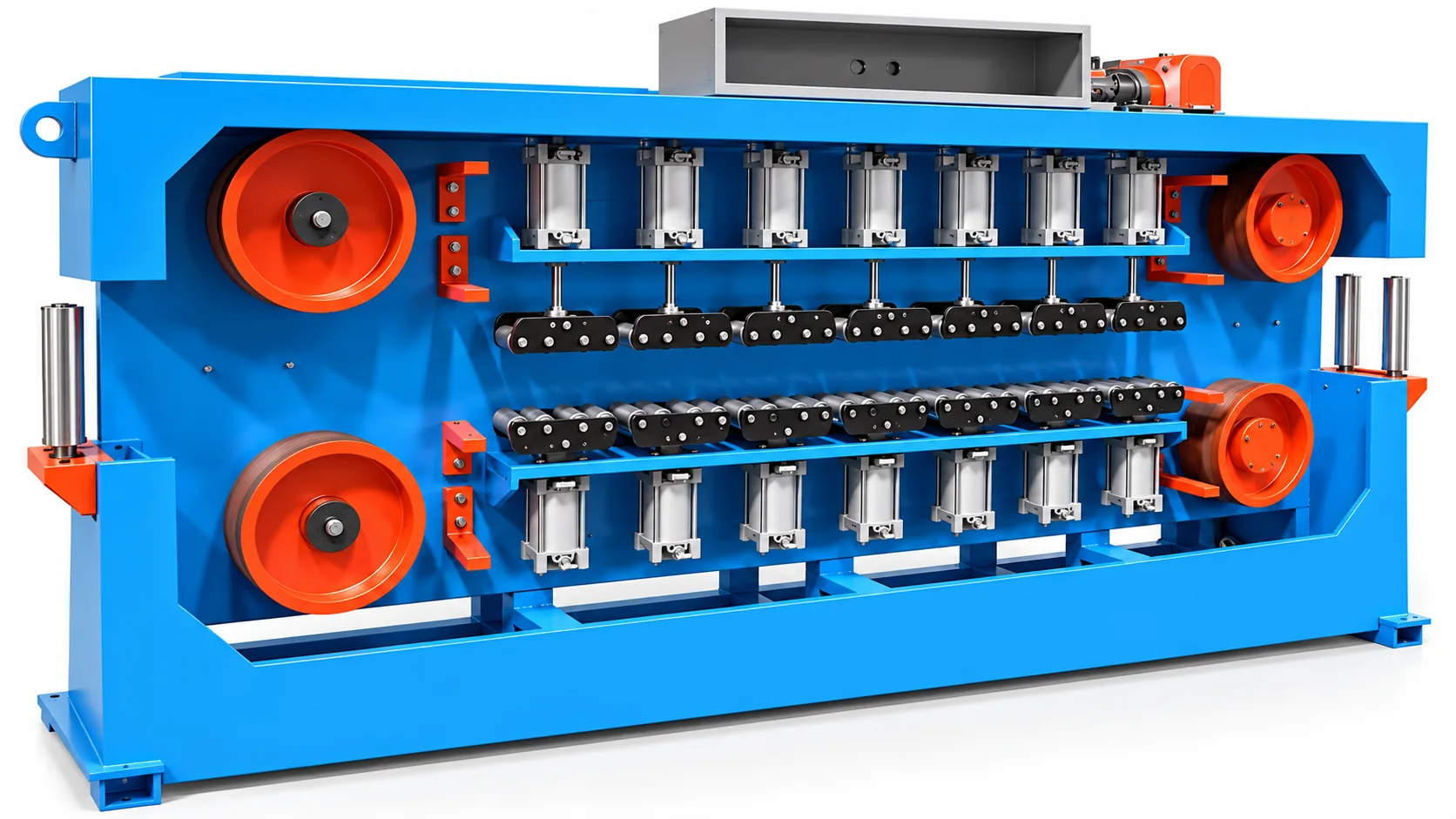

Caterpillar Haul-Off Machine
Supertec's Supermac Caterpillar series is designed for precise, slip-free cable traction, with AC servo drives, adjustable pneumatic belt pressure, and configurations from 4+4+2 to 12+12+2.
overview
Machine overview.
Supertec Machines Pvt. Ltd. manufactures caterpillar haul-off machines for cable and wire production lines in India and abroad. The Supermac Caterpillar series uses next-generation AC servo motors for precise control, efficient operation, and reliable performance across a range of applications.
A high-torque gearbox and constant-torque compact motors provide smooth handling across product sizes without frequent gear changes. High-friction Nitrile rubber belts and synchronized dual drives are designed to deliver uniform traction and slip-free pulling force.
Key Features
Thoughtfully engineered for precision, reliability and lasting performance.
Precise traction. Safer, more efficient operation.
AC Servo Drive
Next-generation AC servo motors support precise control and efficient operation.
High-Torque, Constant-Torque Drive
A high-torque gearbox and compact constant-torque motors handle different product sizes without frequent gear changes.
Slip-Free Traction
High-friction Nitrile rubber belts and synchronized dual drives provide controlled pulling force.
Adjustable Belt Pressure
A pneumatic controller adjusts the pressure applied by the belt to the cable.
Centered Cable and Belt
Belt guide rollers and adjustable vertical and horizontal cable guides help maintain alignment.
Line Speed Measurement
An integrated sensor device measures line speed for process monitoring.
Fully Guarded and CE Marked
The machine is fully guarded for operator safety and carries CE marking confirming conformity with European standards.
Industry 4.0 and IoT Enabled
Compatible with Industry 4.0 norms and IoT-enabled operation.
Easy Maintenance and Integration
Designed for low, easy maintenance and integration into existing production lines without multi-step gearboxes.
Operator Safety Switches
Electromechanical switches help protect operators while the machine is running.
Precision engineered · Built for industry
Applications
Consistent pulling across cable applications.
Cable Extrusion Lines
Provides controlled pulling force through cable extrusion and processing stages.
HT, LT, and XLPE Cables
Adjustable clamping pressure supports different cable diameters, including HT, LT, and XLPE cables.
Integrated Production Lines
Designed to synchronize with extrusion lines, coilers, take-up units, and existing production equipment.
Precision engineeredSupertec Machines
machine range & controls

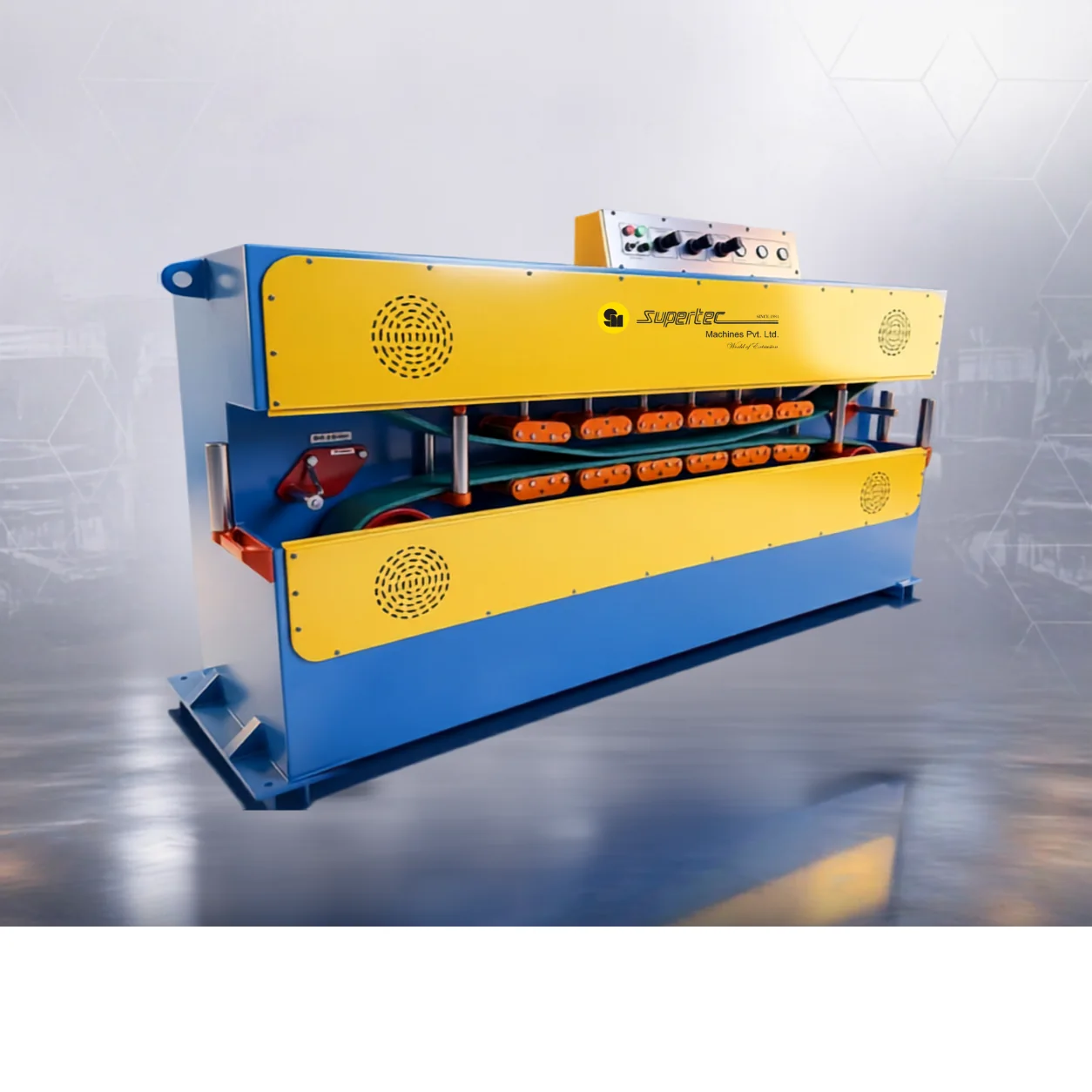

Caterpillar Haul-Off Machine
- Supermac Caterpillar configurations
- 4+4+2 to 12+12+2
- Drive system
- AC servo motors with high-torque gearbox
- Belt material
- Nitrile rubber
- Belt pressure control
- Pneumatic
- Line speed measurement
- Integrated sensor device
- Safety and standards
- Fully guarded; CE marked
advantages
Thoughtfully engineered for precision, reliability and lasting performance.
Reliable traction built for continuous production.
Consistent Line Speed
Synchronized dual drives and precise speed control support uniform traction.
Reduced Gear Changes
Constant-torque motors are designed to handle different product sizes without frequent gear changes.
Energy-Efficient Operation
Efficient drive systems are designed to reduce power consumption during industrial operation.
Long-Term Reliability
Rugged construction and quality components support low-vibration, low-maintenance continuous operation.
Operator Protection
Full guarding, emergency stop mechanisms, and electromechanical safety switches support safer operation.
Precision engineered · Built for industry
FAQs
Frequently asked questions.
Helpful details about this machine, its capabilities, and applications.
What does a caterpillar haul-off machine do?
What Supermac Caterpillar configurations are listed?
How is the belt pressure adjusted?
Does it support operator safety and line integration?
