175+80 mm Extrusion Line with 4500 mm Take Up and Pay Off Machine

Extrusion line with 4500mm take up and pay off

A take up and pay off machine plays a critical role in modern cable production lines, ensuring precise tension control and smooth material handling. These systems are widely used across the wire and cable industry and are often designed in compliance with international manufacturing and safety standards followed by organizations such as the International Electrotechnical Commission (IEC) and respected cable machinery manufacturers like Niehoff GmbH

175+80 mm Extrusion Line with 4500 mm Take Up and Pay Off Machine is a high-performance industrial solution designed for wire, cable, and plastic extrusion manufacturing. This extrusion line features a combination of 175 mm and 80 mm extruders, ensuring stable output, uniform coating, and high production efficiency. Equipped with a 4500 mm take-up and pay-off machine, the system provides smooth material handling, precise tension control, and continuous operation, reducing downtime and improving overall productivity. Its robust construction and advanced control system make it an ideal choice for reliable and long-term industrial production.

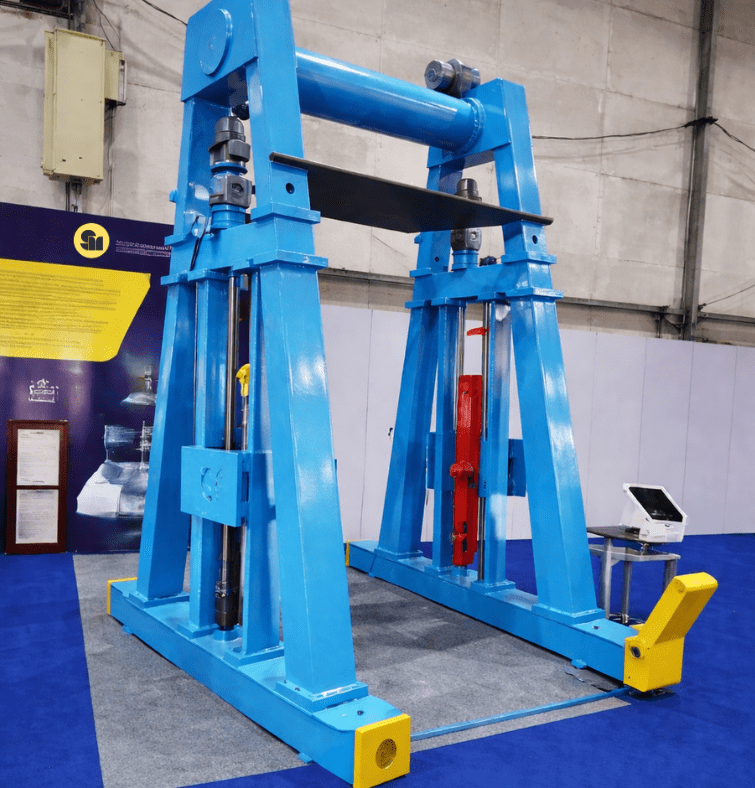

Take up Machine

SUPERTEC Machines Pvt. Ltd. offers a comprehensive range of high-performance Take Up and Pay Off Machine for cable production lines, developed through decades of engineering expertise, continuous innovation, and customer-focused design. Each Take Up and Pay Off Machine manufactured by SUPERTEC Machines is engineered with advanced mechanical design and in-depth technical research to ensure reliable operation, precise tension control, and efficient cable production.

SUPERTEC Machines manufactures Take Up and Pay Off Machines in sizes ranging from 500 mm to 4500 mm, including heavy-duty models suitable for high-capacity cable drums. These systems support production speeds from 1 mpm to 1600 mpm, making our Take Up and Pay Off Machines ideal for applications such as building wires, automotive cables, communication cables, and special cable production lines.

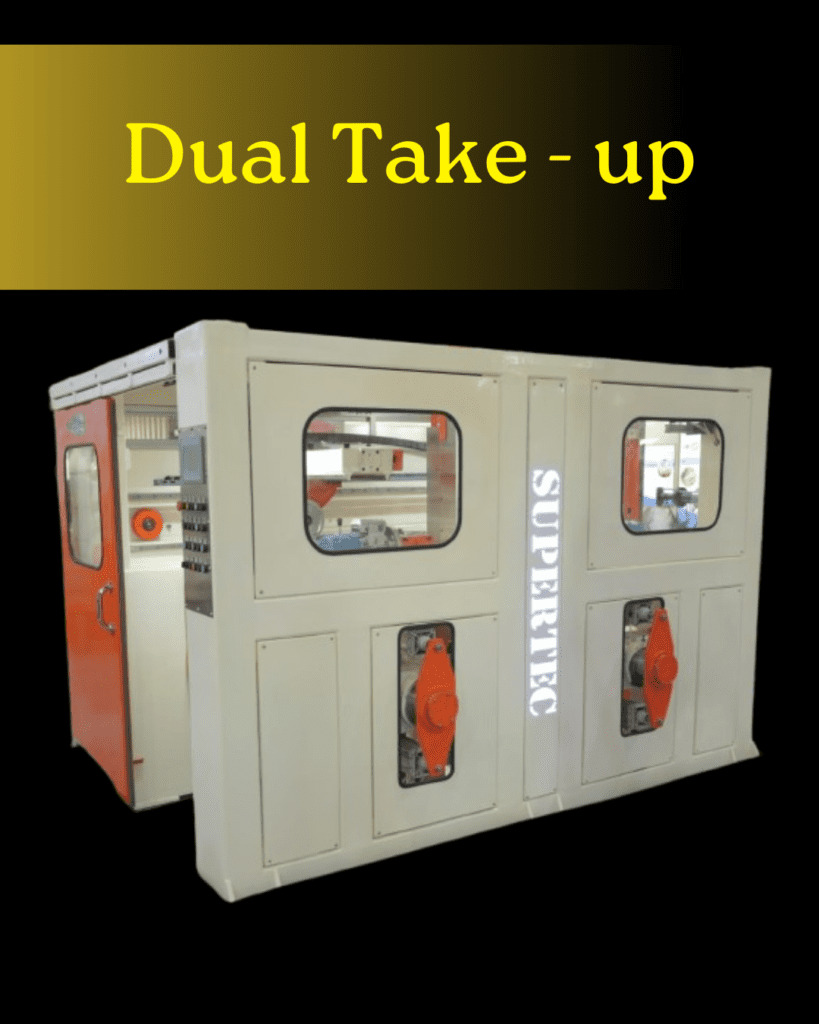

The product portfolio, supporting the 175+80 mm Extrusion Line with 4500 mm Take Up and Pay Off, includes a 4500 mm high-capacity Take-Up & Pay-Off, self-traversing take-up systems ranging from 1600 mm to 3000 mm, and motorized pay-off solutions from 500 mm to 800 mm for smooth and stable material feeding. The range also covers flyer pay-off, driven pay-off, pneumatic loading pay-off, portal-type take-up & pay-off, dual take-up, hydraulic lifting take-up & pay-off, gantry-type take-up & pay-off, and column-type take-up & pay-off systems—each engineered to meet diverse production requirements while aligning with customer-specific operational needs and budget considerations.

Pay Off Machine

Key features:

Very easy and user-friendly operation
Built with high safety standards for reliable performance
All machines are fully guarded for operator protection
Extremely maintenance-friendly design reduces downtime
Easy integration with existing production lines
Advanced PLC-based winder control with an operator panel
Fully compatible with Industry 4.0 standards & IoT-enabled
Remote control system for smooth and efficient operation
Electromechanical safety switches provided for operator safety during running

One common feature across all SUPERTEC models is their durability, sturdiness, and ability to operate non-stop under almost any working condition. Our high-quality workmanship and strict process control ensure precise winding and unwinding, from the slowest to the maximum line speeds.

SUPERTEC Take-Up & Pay-Off systems are available with AC Servo motors, advanced drive controls, and a PLC-based automation system for smooth and synchronized operation.

The design team at SUPERTEC Machines Pvt. Ltd. has developed a new generation of Take Up and Pay Off machine that offer reduced weight, higher speed capability, superior precision, and low maintenance requirements. These advantages give our customers a unique competitive edge in production efficiency and machine reliability.
All our machines are CE certified, guaranteeing international safety and performance standards.
